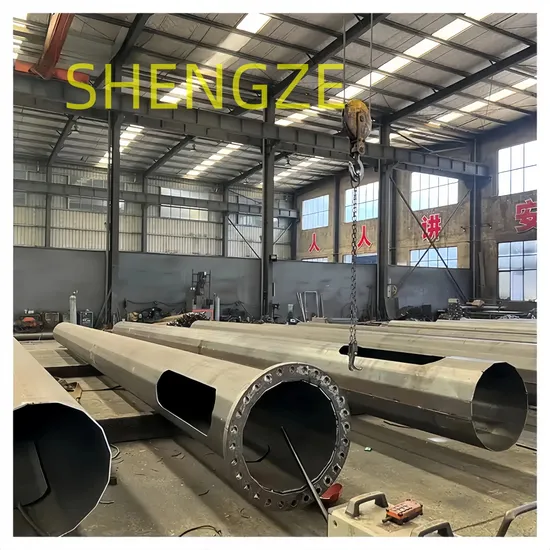

Earthquake Resistant Street Garden Pole for Enhanced Stability

Customization:	Available
Certification:	CE
Application:	Highway/ Garden High/Speed Road /Urban Roads

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

SZ-328

Material

Steel

Type

Round,Single-Arm;Dual-Arm;Octagonal

Surface Treatment

Hot DIP Galvanized+Powder Coating

Design of Pole

Against Earthquake of 8 Grade

Thickness

2.5mm - 5.5mm

IP Rating

IP67

Resistant to Wind

160km/H

Transport Package

Felt Cloth and Bubble Plastic Film

Specification

3m 4m 5m 6m 7m 8m 9m 10m 11m 12m

Trademark

shengze

Origin

China

HS Code

7610900000

Production Capacity

500000pieces/Year

Product Description

Hot-dip Galvanized 4M~12M Led Street Light Pole Technical Data

Common AC LED Street Lighting Pole Diameter(solar lighting pole with bigger diameter)
Material	Commonly: Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52
Height	4M	5M	6M	7M	8M	9M	10M	12M
Dimensions (d/D)	60mm/ 140mm	60mm/ 150mm	70mm/ 150mm	70mm/ 170mm	80mm/ 180mm	80mm/ 190mm	85mm/ 200mm	90mm/ 210mm
Thickness	3.0mm	3.0mm	3.0mm	3.0mm	3.5mm	3.75mm	4.0mm	4.5mm
Base Plate	260mm*12mm	260mm*14mm	280mm*16mm	300mm*16mm	320mm*18mm	350mm*18mm	400mm*20mm	450mm*20mm
Tolerance of dimension	±2/%
Minimum yield strength	285Mpa
Max ultimate tensile strength	415Mpa
Anti-corrosion performance	Class II
Against earthquake grade	10
Color	Customized
Surface treatment	Hot-dip Galvanized and Electrostatic Spraying, Rust Proof, Anti-corrosion performance Class II
Shape Type	Conical pole, Octagonal pole,Square pole, Diameter pole
Arm Type	Customized: single arm,double arms,triple arms,four arms
Stiffener	With big size to strength the pole to resist the wind
Powder coating	Thickness of powder coating>100um. Pure polyester plastic powder coating is stable, and with strong adhesion & strong ultraviolet ray resistance. Film thickness is more than 100 um and with strong adhesion. The surface is not peeling even with blade scratch (15×6 mm square).
Wind Resistance	According to local weather condition, General design strength of wind resistance is ≥150KM/H
Welding Standard	No crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects.
Hot-Dip Galvanized	Thickness of hot-galvanized>80um. Hot Dip Inside and outside surface anti-corrosion treatment by hot dipping acid. which is in accord with BS EN ISO1461 or GB/T13912-92 standard. Designed life of pole is more than 25 years, and the galvanized surface is smooth and with the same color. Flake peeling hasn't been seen after maul test.
Anchor bolts	Optional
Material	Aluminium,SS304 is available
Passivation	Available
