Premium Die-Casting Street Light with Long-Lasting LED Technology

Customization:	Available
Power Supply:	AC
Color Temperature:	3000K-5000K

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

SZ-217

Lamp Body Material

Aluminum

Power

150lm/W

Application

Square, Highway, Garden, Parking Lot

IP Rating

IP66

Certification

CCC, CE

Input Voltage

24v

With Light Source

LED Chips Brand

Philis

Working Temperature

-40~50

Charging Time

6-8 Hours

Type

High Lumens Waterproof IP65 LED Street Light

Thickness

2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5.0mm

Height

3m 5m 6m 7m 8m 10m 12m 15m 20m

Transport Package

Carton, Wooden Case

Specification

450*180*52mm

Trademark

shengze

Origin

China

HS Code

8539510000

Production Capacity

500000pieces/Year

Product Description

1, Specification: Discover the meticulous specifications that make our street light a superior choice. Engineered to perfection, our product features state-of-the-art materials and design, ensuring optimal functionality and energy efficiency for a sustainable future.

No	Item	Picture	Parameters

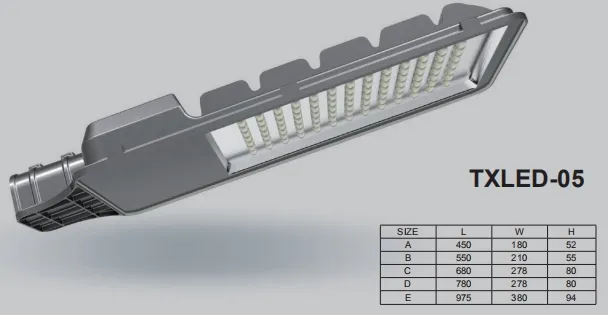

1	TXLED05 Led Lamp		Power:20w/30w/40w/50w/60w/80w/100w/120w/150w Lumens:100-120lm/w Voltage:AC90-305V Color temperature:3000-6500K

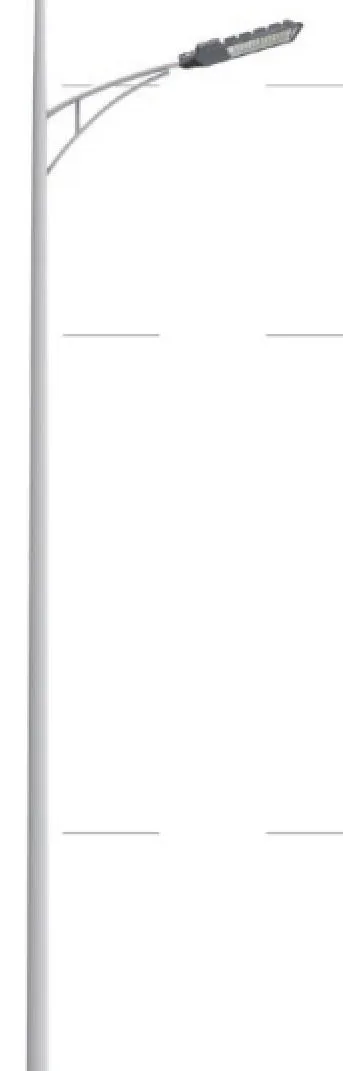

2	Pole		Height: 5m(A); Diameter: 60/140mm(d/D); Thickness: 3mm(B);Flange Plate:24012mm(WT)
			Height: 6m(A); Diameter: 60/140mm(d/D); Thickness: 3mm(B);Flange Plate:24012mm(WT)
			Height: 7m(A); Diameter: 70/160mm(d/D); Thickness: 3.5mm(B);Flange Plate:30014mm(WT)
			Height: 8m(A); Diameter: 70/160mm(d/D); Thickness: 3.5mm(B);Flange Plate:30014mm(WT)
			Height: 9m(A); Diameter: 80/180mm(d/D); Thickness: 4.0mm(B);Flange Plate:35018mm(WT)
			Height: 10m(A); Diameter: 80/200mm(d/D); Thickness: 4.0mm(B);Flange Plate:35018mm(WT)
3	Anchor Bolt		4-M16;4-M18;4-M20;4-M24

Number	specifications	material quality	Upper caliber	Lower caliber	wall thickness
1	3m	Q235	76 mm	120 mm	3 mm
2	4m	Q235	76 mm	135 mm	3 mm
3	5m	Q235	76 mm	135 mm	3 mm
4	6m	Q235	76 mm	135 mm	3 mm
5	7m	Q235	76 mm	150 mm	3 mm
6	8m	Q235	76 mm	150 mm	3 mm
7	9m	Q235	76 mm	180 mm	3.25 mm
IP Grade			IP65 Wateproof
Type			High Lumens Waterproof IP65 LED Street Light
Lamp Luminous Efficiency(lm/w)			130-150
